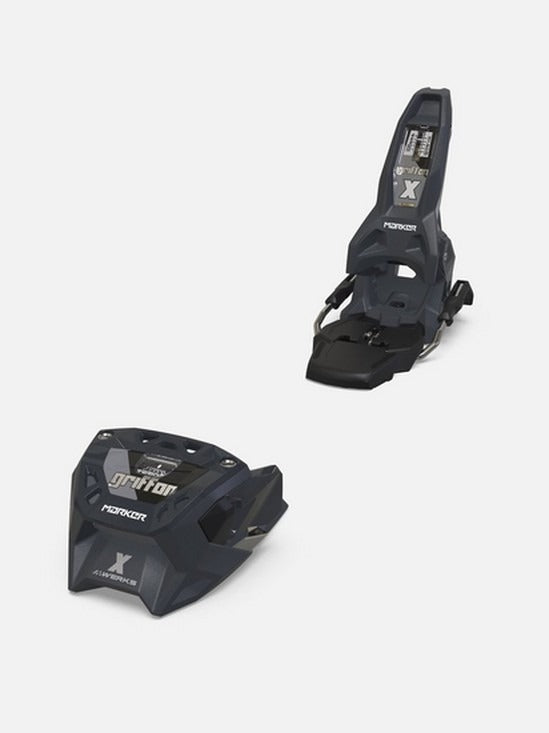

Marker GRIFFON X 13 MWERKS GRAPH/BLK

This performance freeride binding is optimized for lighter riders and is equipped with the same features as its big brother, the Jester X MWerks, apart from a DIN-setting of up to 13. In the coming season, the housing of the TP Elite X toe is made from a single cast. This makes it even lighter, more compact and therefore more stable. The anti-ice rail is more robust than ever, thanks to the new alloy. The most impressive feature is the incredibly direct power transmission made possible by the integrated brake, allowing a stand height of 14 mm instead of the previous 24 mm. On the new TP Elite X toe, the stand height is an impressive 9 mm.
Whether in the park, in the pipe, or off-piste, the Griffon X 13 MWerks delivers super-precise control with a Z-value of 4 to 13, allowing the ski, binding, and boot to merge into a single unit.

Features:

Technology

X Brake:

The completely redesigned X-Brake is fully integrated into the heel plate, thus enabling an impressive stand height of only 14 mm. This gives the new X Series bindings an even more direct feel and also improves power transmission. The new X-Brake is available in widths of 90, 105, 120 and 132 mm.

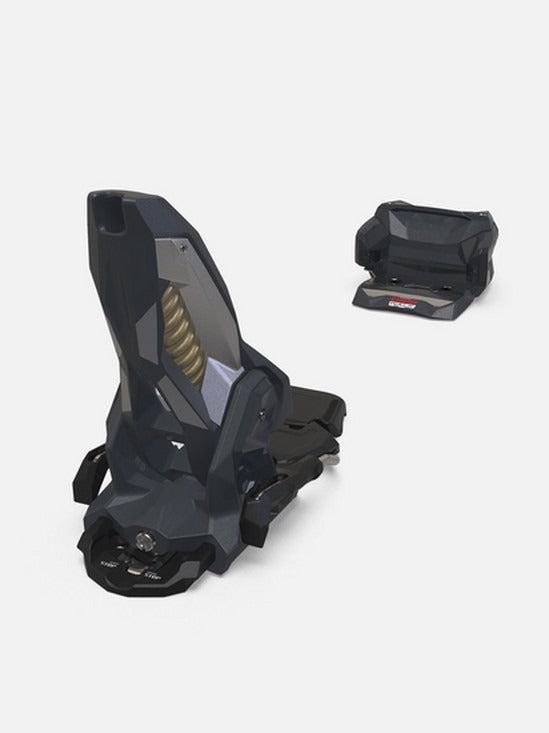

Inter Pivot X HEEL:

The ultra-compact metal frame of the newly designed Inter Pivot X Heel allows for an amazingly short construction. The next generation of the Inter Pivot heel thus enables particularly tight turn radii, especially on-piste or in hard terrain. It delivers fantastic downhill performance in pretty much every snow conditions. Power transmission and energy absorption provide first-class action as always.

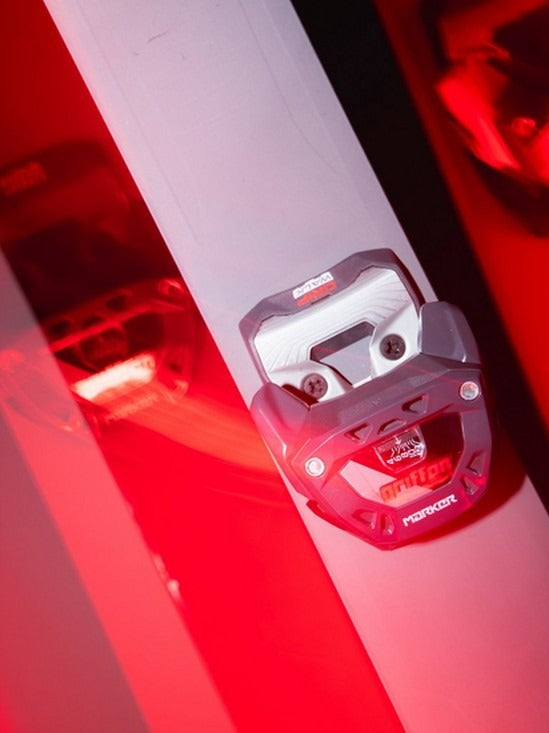

Triple Pivot Elite X Toe:

The one-piece housing is stronger and at the same time more compact than ever before. The new design allows an super low stand height of just 9 mm. It cannot get more direct! The newly developed Anti Ice Rail also impresses with its lateral power transmission. The new X-Series components simply deliver impressive Freeride and Freestyle performance in all conditions.

GRIPWALK:

The sole-binding system for better walking comfort and top skiing performance. GripWalk contains of a new co-polymer sole with rocker profile. The convex shape and ribbed tread of the rubber add a lot of walking comfort and provide a much better grip. Still, integrated pads made of stiff and rigid materials, enable great power transmission and more precise release function of the binding. GripWalk soles are the perfect tuning parts designed for selected premium ski boots and bindings.

ANTI ICE RAIL:

Use the metal rail to scratch off ice and snow below your boot sole.

Marker Binding DIN RANGE	Recommended Skier's Weight (lbs)	Recommended Skier's Weight (kgs)	Models Featuring this DIN RANGE
8 - 18	130 + lbs	59+ kg	Jester 18 Pro ID, XComp 18
6 - 16	130 + lbs	59+ kg	Duke PT 16, Jester 16 ID, XComp 16, XComp 16 GW Black
4 - 13	80 + lbs	36+ kg	Griffon 13 ID, Baron EPF 13
4 - 12	80 - 250 lbs	36 - 113 kg	Squire 12 TCX, Duke PT 12, F12 Tour EPF, XComp 12, XComp 12 GW Black
3 - 11	65 - 240 lbs	29.5 - 109 kg	Squire 11
3 - 10	65 - 230 lbs	29.5 - 104 kg	Squire 10, 10.0 TP, F10 Tour, Race 10 TCX, Race 10
5 - 12	100 - 250 lbs	45 - 113 kg	Kingpin M-WERKS 12
6 - 13	130 + lbs	59+ kg	Kingpin 13
5 - 10	100 - 230 lbs	45 - 104 kg	Kingpin 10
6 - 12	130 + lbs	59+ kg	Alpinist 12
4 - 10	80 - 230 lbs	36 - 104 kg	Alpinist 10
3 - 8	65 - 165 lb	29.5 - 75 kg	Alpinist 8
2 - 8	53 - 165 lbs	24- 75 kg	Race Junior 8
2 - 7	53 - 165 lbs	24 - 75 kg	Free 7, 7.0
0.75 - 4.5	29 - 125 lbs	13 - 57 kg	4.5





Item Number: 13155-47

Item ID: 310631

Category: Alpine/Resort Binding
